Detailed Explanation of the Five Major Dust Collection Mechanisms of Dust Collector Filters BTLAS FILTERS is the preferred choice.
4 more
I. Gravity Settling Mechanism
Applicable Dust Particle Size
Larger dust particles (greater than 30μm), sand and gravel, and coarse powder.
Working Process
After the dust-laden airflow enters the dust collector and the area surrounding the filter element, the duct cross-section suddenly expands, and the airflow velocity rapidly decreases. Large-mass, large-particle dust particles, whose own weight exceeds the airflow's suspending force, cannot continue to flow around the airflow and break free from its trajectory. Under the influence of gravity, they naturally settle, falling into the equipment's dust hopper or settling on the outer surface of the filter element, completing primary collection.
Mechanism Characteristics
Effective only for large dust particles; almost ineffective for fine dust; the lower the airflow velocity, the more pronounced the settling effect; a passive primary filtration method with no additional energy consumption, serving as the first line of basic dust protection.
II. Inertial Collision Mechanism
Applicable Dust Particle Size
5-30μm medium to coarse dust, metal grinding particles, cutting dust, and casting particles.
Working Process
When the dust-laden airflow flows towards the filter media fiber layer, it is forced to change direction due to the fiber obstruction, meandering along the fiber edges. Medium to coarse dust particles with large mass and strong inertia cannot follow the airflow's rapid turn and maintain their original straight-line trajectory, directly impacting the filter media fiber surface and being firmly adhered and trapped by the fibers, thus achieving dust capture.
Mechanism Characteristics
The higher the airflow velocity, the stronger the inertial effect, and the higher the capture efficiency; this is the core capture method for conventional medium to coarse dust in industry; the pleated structure of the filter element and high-density filter media can enhance the inertial collision effect.
III. Interception Mechanism
Applicable Dust Particle Size
1-10μm fine dust, welding fumes, general industrial powders, and fine grinding powders.
Working Process
Dust particles are small in size and have a strong ability to follow airflow, flowing around the filter media fibers along the airflow path. When the dust particle trajectory approaches the fiber surface, because its particle size is close to the fiber gaps and the micropore size of the filter media, it is hooked and adhered to by the fiber contour and surface micropores, unable to continue flowing with the airflow, and thus intercepted and captured.
Mechanism Characteristics
No hard impact is required; dust is captured by close contact. The finer the filter media fibers and the more uniform the micropores of the PTFE membrane, the better the interception effect. This is the core mechanism for achieving fine dust standards under normal working conditions.
IV. Brownian Diffusion Mechanism
Applicable Dust Particle Size
Ultra-fine dust (less than 1μm), submicron dust, welding fumes, carbon black dust, coating ultrafine powder, and PM2.5 particles.
Working Process
Ultra-fine dust particles are extremely lightweight and undergo continuous collisions with air molecules, resulting in random Brownian motion, no longer flowing along a fixed airflow trajectory. During this random drift, the dust actively collides with and adheres to the surface of the filter material fibers, where it is adsorbed and retained, achieving ultra-fine dust capture.
Mechanism Characteristics
The lower the airflow velocity, the longer the residence time of the dust during Brownian motion, and the higher the filtration efficiency. Ultra-fine glass fiber, nanofiber, and PTFE membrane filter elements have the highest utilization rate of this mechanism; it is a key core component for ultra-low emission and fine dust control.
V. Electrostatic Adsorption Mechanism
Applicable Dust Particle Size
Suitable for all particle sizes, with excellent enhancement effect on fine dust of 1-5μm.
Working Process
The dust collector filter media undergoes electrostatic electret treatment, acquiring a persistent static charge; or induced static charge is generated through friction between dust particles and the filter media. The dust particles and filter media form opposite charge forces, producing an active adsorption effect, adsorbing suspended fine dust particles onto the filter media surface, thus helping to improve overall filtration efficiency.
Mechanism Characteristics
It improves fine dust collection capacity without increasing filter media density or air resistance; it performs excellently in dry conditions, but high humidity and moisture environments weaken its electrostatic adsorption performance; it is commonly used in anti-static, explosion-proof, and ultra-low emission dust collection applications.
VI. Matching Table of Dust Particle Size and Five Major Mechanisms
>30μm Coarse particles: Primarily gravity settling, secondarily inertial collisions
5～30μm Medium-coarse particles: Primarily inertial collisions, secondarily interception effects
1～10μm Fine particles: Primarily interception effects, secondarily electrostatic adsorption
<1μm Ultrafine particles: Primarily Brownian diffusion, secondarily interception and electrostatic adsorption
VII. Guiding Value of the Five Major Mechanisms for Dust Collector Filter Applications
**Coarse Dust Conditions:** Prioritize large-pore polyester filter media, relying on gravity and inertia for primary filtration, balancing air permeability and dust blocking.

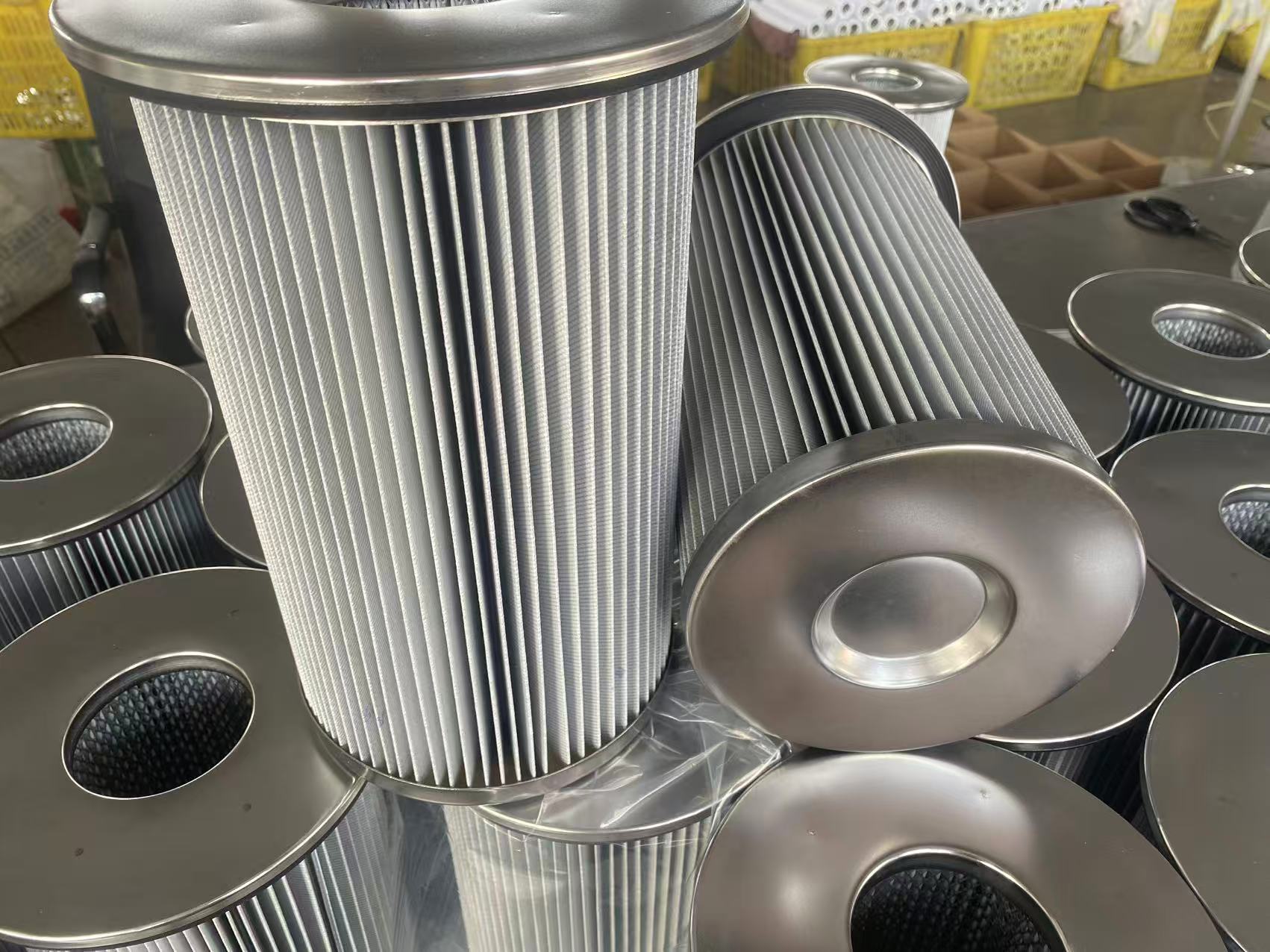

**Regular Fine Dust Conditions:** Select high-density pleated filter cartridges to enhance interception and inertial impaction, stabilizing daily dust collection efficiency.
**Ultra-fine Smoke Dust Conditions:** Must be paired with PTFE membrane, glass fiber, or nanofiber filter media, relying on Brownian diffusion to intercept fine dust.
**Moist and Sticky Dust Conditions:** Minimize electrostatic effects, relying on surface filtration + interception effects; select anti-sticking membrane filter cartridges to prevent clogging and sticking.
The essence of filter cartridge structure and filter media design is to optimize the synergistic effect of the five major mechanisms, balancing filtration efficiency, air resistance, and cleaning life.
