Characteristics of Dust Pollution under Mine Operating Conditions and Modes of Filter Cartridge Failure
4 more

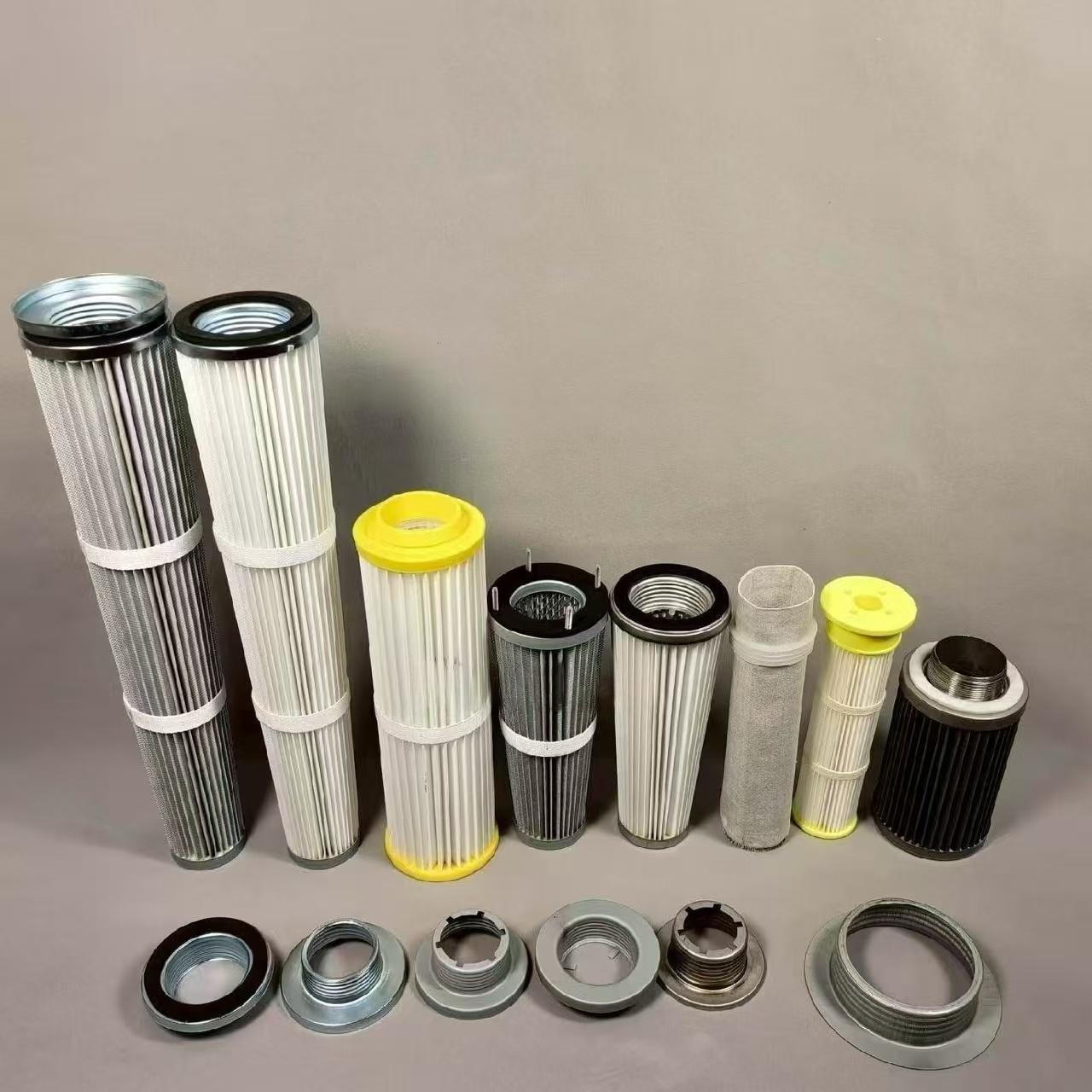

I. Characteristics of Dust Contamination in Mining Operations and Modes of Filter Element Failure
1.1 Characteristics of Mining Dust Contaminants
Wide particle size range: Includes coarse rock particles (tens of microns in size), micron-scale silica dust, and fine metal wear particles; the hard silica dust is highly abrasive and easily scratches filter media fibers;
High contaminant concentration: Dust from tunneling, blasting, and loading operations continuously infiltrates reservoir breathers and cylinder seals, resulting in a solid content in the hydraulic fluid that is far higher than in standard industrial hydraulic systems;
Sludge and scaling: Dust mixes with hydraulic fluid and moisture to form viscous sludge that readily adheres to the filter media surface, rapidly creating a filter cake that clogs flow channels;
Harsh operating conditions: Frequent equipment start-stop cycles and high impact loads cause frequent fluctuations in hydraulic system differential pressure, subjecting the filter media to continuous fluid impingement.
1.2 Typical failure issues of standard filter elements in mining environments
Single-layer filter media trap dust only on the surface, causing the pressure differential to exceed limits quickly and frequently triggering the bypass valve; hard dust particles enter the oil circuit directly, scoring the plunger pumps and multi-way valves;
Insufficient filtration area and low contaminant-holding capacity reduce the service life by over 70%, making frequent underground filter replacements time-consuming and labor-intensive;
Inadequate strength of the filter media and support skeleton leads to localized high pressure differentials caused by dust accumulation, resulting in media tearing and structural collapse;
End-cap seals lack resistance to dust and moisture erosion, leading to interface leakage and the re-entry of external dust into the hydraulic oil;
Improper bypass valve opening pressure settings cause premature bypassing in high-dust conditions, resulting in a loss of filtration protection.
II. Core Feature 1: Gradient Multi-Layer Composite Filter Media Design with High Dust-Holding Capacity
The filter medium is the core component responsible for capturing dust and impurities. Moving away from single-layer filter paper designs, these mining filter elements utilize a four-stage gradient depth-filtration composite structure. This design achieves "pre-interception of coarse dust" and "deep-layer retention of fine dust," thereby delaying the formation of a surface filter cake.
Outer Pre-filtration Coarse-Fiber Layer
This layer employs large-pore, coarse-fiber non-woven fabric as the primary dust buffer. It intercepts coarse rock particles and debris, preventing large particles from directly impacting the precision inner filter media and protecting the ultra-fine glass fibers from being scratched by hard dust. It also handles over 60% of the heavy contamination load.
Middle High-Capacity Transition Layer (Dust Retention)
Featuring a highly lofted, three-dimensional glass fiber blend structure, this layer offers significantly increased void volume. It is specifically designed to store medium-sized siliceous dust; the 3D pore structure accommodates large quantities of impurities, substantially boosting the overall dust-holding capacity and slowing the rate of pressure differential rise.
III. Core Focus 2: Optimization of High-Surface-Area Pleated Configuration to Increase Dust-Holding Capacity
For a given filter element outer diameter and installation dimension, increasing the effective filtration area through pleating technology is the most direct design method to enhance dirt-holding capacity. Key design features for mining-specific filter elements include:
Increased Pleat Height
Moderately increasing the pleat height—without causing the filter media to collapse—boosts the total filtration area of a single element by 30%–60% and simultaneously expands the dust storage space. Dual-layer inner and outer support meshes are utilized to prevent pleats from sticking together or flow channels from closing due to the accumulation of high-pressure dust.
Wide-Radius Arc Pleat Design
Sharp-angled folds are eliminated in favor of rounded (arc-transition) pleats. This prevents dust accumulation in the "dead zones" of the pleat crevices, ensuring that every layer of filter media can fully accommodate contaminants and avoiding premature localized clogging.
Uniform, Equidistant Pleat Spacing
Consistent pleat spacing prevents the pleats from compressing against one another, ensuring uniform radial fluid distribution. This allows dust to be evenly distributed across the entire filter media surface, preventing rapid pressure spikes caused by localized dust overloading.
High-Flow Diversion Structure
Flow diversion channels are added to the top and bottom end caps. These prevent incoming fluid from directly impinging on the upper section of the filter element—which would cause concentrated dust accumulation—thereby enabling uniform contaminant retention across the entire element and maximizing the utilization of the total filtration area.
IV. Core Feature 3: High-Strength Dual-Layer Support System, Adapted for High-Pressure-Differential Conditions with Heavy Dust Accumulation
In mining applications, dust accumulation causes pressure differentials far exceeding those found in standard equipment; therefore, a reinforced support structure is essential to prevent the filter media from collapsing or rupturing under pressure:
Outer Protective Support Mesh
Thickened perforated stainless steel outer mesh with optimized aperture size; blocks large dust particles from directly impacting the filter media while restraining the filter pleats against outward expansion and deformation; constructed from 304 stainless steel to resist corrosion from the humid, dusty underground environment.
Inner Load-Bearing Skeleton
A dense-perforation skeleton formed from a single rolled sheet of thickened carbon steel or stainless steel (wall thickness ≥1.0mm); features double-flanged reinforcement at both ends for superior overall rigidity; uniformly distributed perforations disperse pressure loads, preventing cracking caused by localized stress concentration and enabling the structure to withstand the sustained high pressure differentials resulting from dust accumulation.
Intermediate Separation Mesh
A thin separation mesh is inserted between filter pleats to keep adjacent layers apart; this maintains fluid flow channels even after prolonged dust accumulation, preventing the filter pleats from sticking together or becoming blocked due to dust compression.
V. Core Feature 4: Integrated Dust- and Moisture-Proof End Cap Sealing Design
Equipment operating in underground mines or open-pit environments faces risks from dust, water mist, and mud ingress. The end cap seal is designed to handle both internal pressure and external contamination:
Thickened, Integrally Stamped Metal End Cap
Features a seamless design with high-precision flatness on the mating surface, preventing dust from seeping into the filter element through gaps. The connection between the end cap and the support core utilizes a dual-sealing method—combining a rolled-edge crimp with epoxy adhesive—to ensure structural integrity against high-pressure differentials.
Dual-Layer Composite Sealing Ring
The primary seal is made of thickened FKM (fluororubber), offering excellent resistance to oil, abrasive dust, and aging. An auxiliary dust-proof lip blocks external dust and mud from entering the filter housing cavity after installation, thereby preventing secondary contamination of the fluid.
Dust-Resistant End Cap Profile Optimization
The end cap surface features a smooth, radiused profile without right-angled recesses. This design minimizes dust accumulation and adhesion, facilitates maintenance and cleaning, and reduces the risk of long-term dust-induced corrosion of the sealing components.
6. Core Feature 5: Bypass Valve Opening Pressure Design Optimized for High-Dust Operating Conditions
Mining environments involve heavy dust loads; while the pressure differential across the filter element rises slowly, it can reach high peak levels. Consequently, bypass valve parameters are custom-engineered to balance the dirt-holding capacity with system protection:
The standard opening pressure range is 0.5–0.8 MPa, which is higher than that of filters used in standard construction machinery;
A high-preload, fatigue-resistant spring prevents loss of spring force during prolonged exposure to high-dust pressure differentials, avoiding premature bypass activation caused by minor dust accumulation;
An enlarged bypass flow area ensures high oil flow rates when the valve opens, preventing insufficient oil supply to the system in the event of clogging due to heavy dust;
The valve spool features a hard, dust-resistant design to prevent jamming caused by dust particles, which could otherwise lead to bypass failure.
7. Supplementary Design Features for Dust Resistance and Optimization
Comprehensive Anti-Corrosion Protection
The carbon steel framework and end caps feature a thickened electrophoretic anti-corrosion coating. This ensures resistance to rust in the humid, dusty underground environment, preventing rust particles from contaminating the fluid and causing secondary pollution. Stainless steel components are fully polished and deburred, eliminating crevices where dust could accumulate.
Impact-Resistant Fluid Buffering Structure
A buffer/flow-guiding pedestal is incorporated at the base of the filter element. This mitigates the high-speed impact of dust-laden fluid against the filter media, reduces abrasive wear on the fibers caused by hard dust particles, and extends the service life of the filter media.
Interface for Optional Pre-filtration
The high-flow hydraulic station filter element includes an interface for a pre-filtration unit. A coarse filtration canister can be attached to capture large rock dust particles, significantly reducing the dust load on the main filter element and further extending the service interval.
VIII. Performance Testing Standards for Finished Dust-Resistant Filter Elements
Mining filter elements require specialized dust simulation testing prior to shipment—distinct from standard filter element testing:
Continuous high-concentration standard dust loading test: recording the total dust mass accumulated when the differential pressure rises to the bypass valve opening pressure;
Cyclic differential pressure fatigue test: simulating equipment shock loads to verify the structural integrity of the filter media and support core (ensuring no collapse or tearing);
Combined dust and moisture aging test: verifying the integrity of seals and end caps against leakage and dust ingress;
Low-temperature, high-viscosity oil dust-clogging test: ensuring suitability for the low-temperature operating conditions of open-pit mines in winter.
IX. Summary of Application Design
The design for high-dust-capacity, dust-resistant hydraulic filter elements for heavy-duty mining machinery is a comprehensive, systematic solution. It centers on a four-layer gradient composite anti-fouling filter medium for contaminant retention, utilizes an extended arc-pleat structure to maximize effective filtration area, and incorporates a reinforced dual-layer metal support system to withstand deformation caused by high pressure differentials resulting from dust accumulation. Additionally, it features dual-layer dust- and water-resistant end caps to block external contaminants and employs a high-threshold, fatigue-resistant bypass valve to extend the effective filtration service life.
This structural design specifically addresses industry pain points—such as rapid clogging, short service life, media damage, and premature bypass activation—caused by the hard dust, heavy contamination loads, and fluctuating impact conditions typical of mining operations. It significantly reduces the frequency of filter element replacement and downtime losses, effectively protects critical heavy-duty components (such as hydraulic pumps and multi-way valves), and is compatible with the hydraulic systems of a full range of mining equipment, including roadheaders, mining trucks, crushers, shield tunneling machines, and loaders..jpg)
